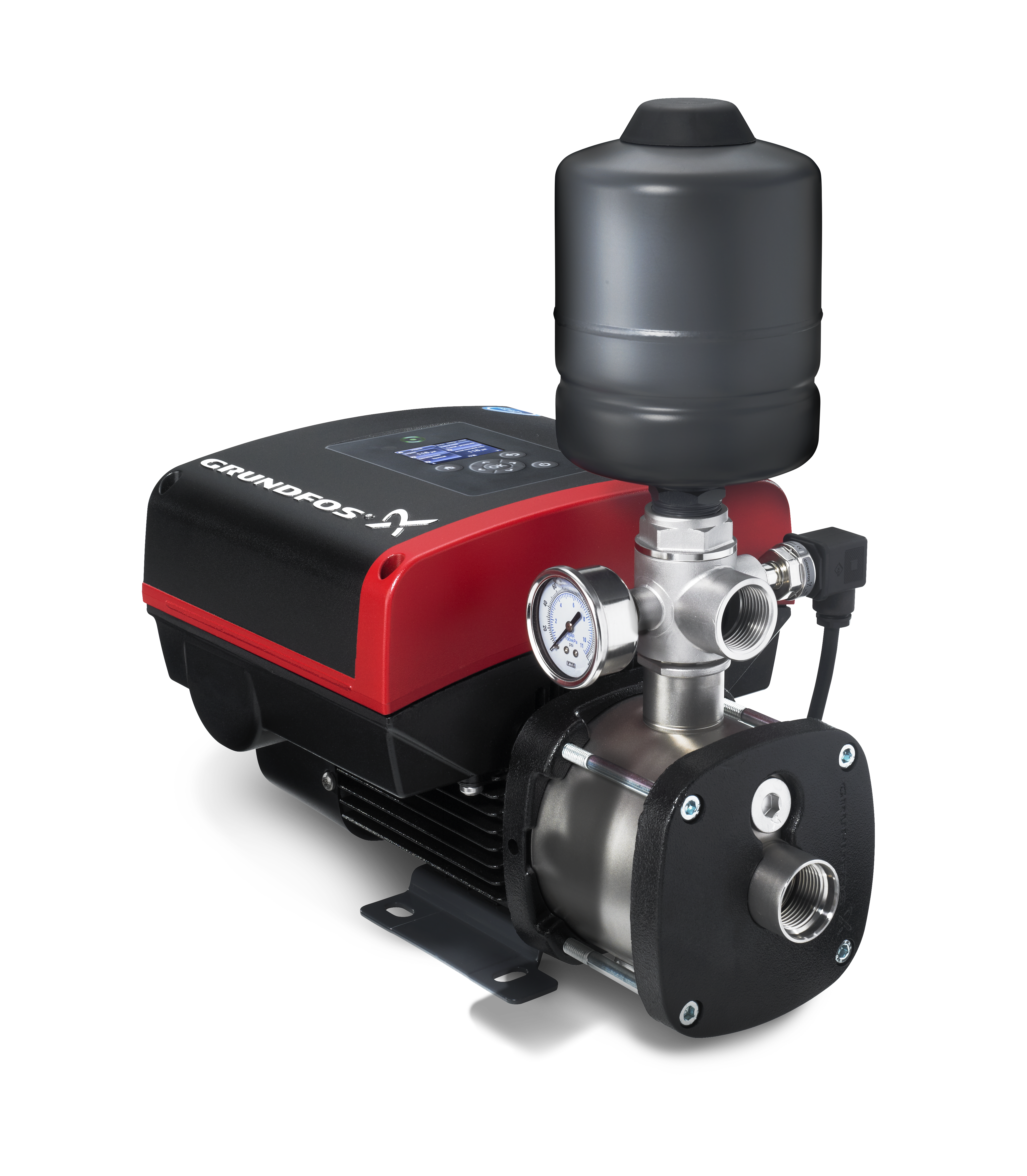

The Grundfos CME Booster is a compact booster system for water supply in domestic applications. The integrated speed controller enables the CME Booster to keep constant pressure in the pipe system. A pressure sensor monitoring changes in the water consumption will signal to the speed controller to change the motor speed to adapt performance to the new state. The CME Booster is very easy to install. When the pipework has been installed, it is all a matter of plugging the unit into a socket, and the system is operational. The CME Booster consists of:
|
Features
|
Thermal protection CME Booster pumps require no external motor protection. The MGE motor incorporates thermal protection against slow overloading and blocking (IEC 34.11: TP
211)
| Product name | CMBE 1-44 I-X-C-B-D-E |
| Product No. | 98810910 |
| EAN | 5.7126E+12 |
| Technical | |
| Pump speed on which pump data is based | 3780 rpm |
| Actual calculated flow | 10.9 US gpm |
| Resulting head of the pump | 95.78 ft |
| Impellers | 3 |
| Primary shaft seal | AQQE |
| Approvals and markings | CE,CULUS |
| Curve tolerance | ISO9906:2012 3B |
| Model | A |
| Start pressure | Integrated Frequency converter |
| Materials | |
| Pump housing | Stainless steel |
| Pump housing | DIN W.-Nr. 1.4301 |
| Pump housing | AISI 304 |
| Impeller | Stainless steel |
| Impeller | DIN W.-Nr. 1.4301 |
| Impeller | AISI 304 |
| Rubber | EPDM |
|
Installation |
|
| Maximum ambient temperature | 113 °F |
| Flange standard | INTERNAL NPT THREAD |
| Pump inlet | NPT 1 |
| Pump outlet | NPT 1 |
| Liquid | |
| Pumped liquid | Water |
| Liquid temperature range | 32 .. 140 °F |
| Liquid temperature during operation | 68 °F |
| Density | 62.29 lb/ft³ |
| Electrical data | |
| Rated power - P2 | 1.012 HP |
| Main frequency | 60 Hz |
| Rated voltage | 1 x 115 V |
| Maximum current consumption | 8:00 AM |
| p max system | 145 psi |
| Rated speed | 360-4000 rpm |
| Enclosure class (IEC 34-5) | IP55 |
| Insulation class (IEC 85) | F |
| Type of cable plug | US5-15 |
| Mains cable | 4.922 ft |
| Tank | |
| Tank volume | 0.528 gal |
| Others | |
| Net weight | 40 lb |
| Gross weight | 61.6 lb |
| Config. file no | 98845992 |

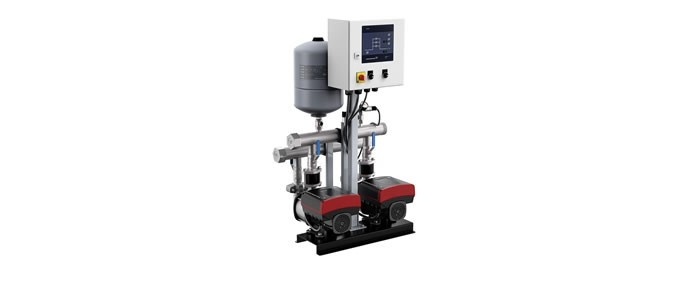

We have had tremendous success replacing aging booster systems in all types of buildings with Grundfos Booster Systems. Our projects have been as small as a single booster in small commercial spaces to the largest city high rises. Grundfos has a complete selection of booster systems and working with Hurley Engineering to size the right equipment for the correct application is always a professional a pleasurable experience. Hurley Engineering also always goes above and beyond helping with design assistance, energy rebates, and start up services. Fantastic Team!
