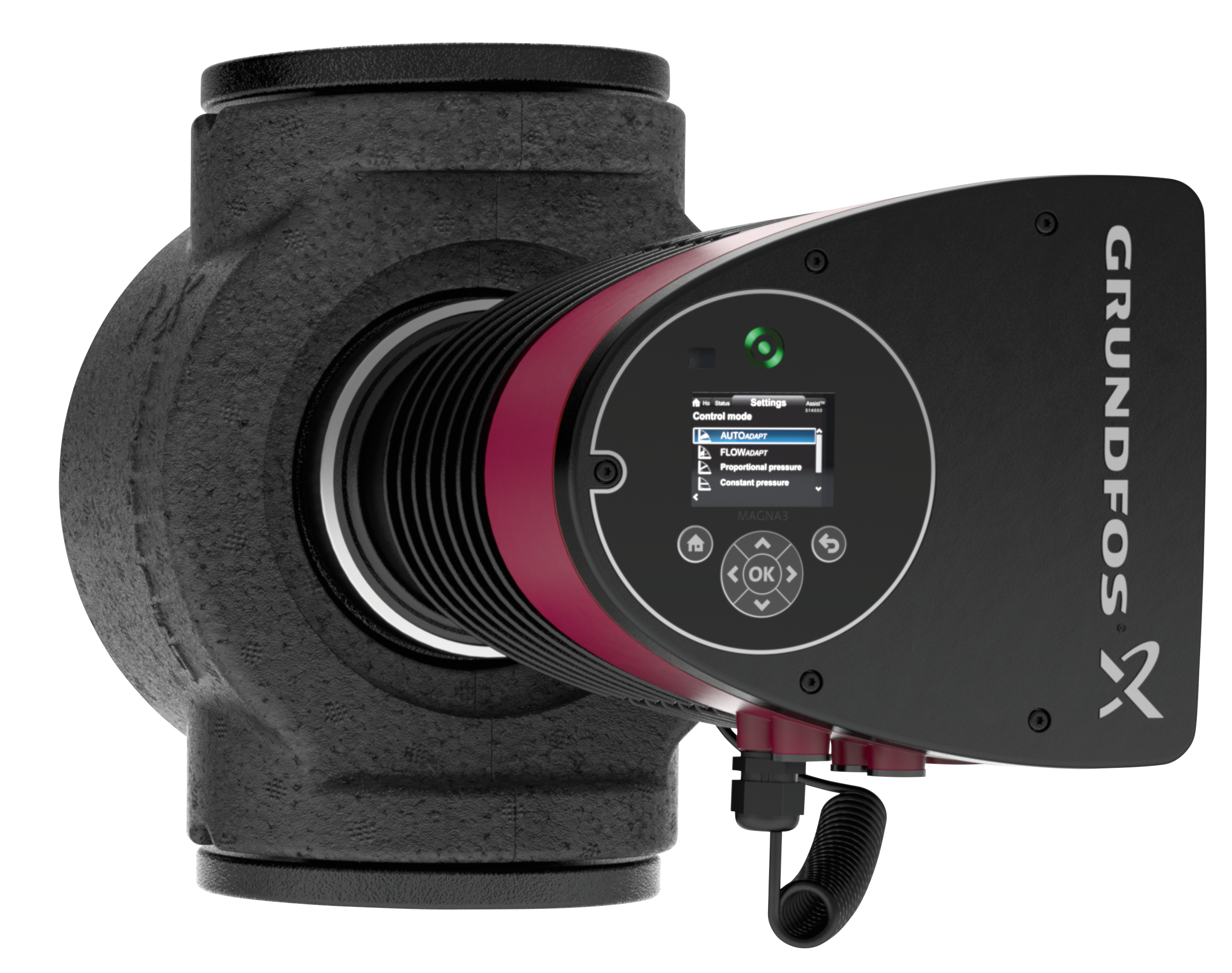

MAGNA3 – More than a pump With its unrivalled efficiency, all-encompassing range and built-in communication capabilities plus functionalities replacing system components, the MAGNA3 is ideal for engineers and specifiers looking to create high-performance systems for buildings. This pump in the Grundfos Master Class will fit both heating and cooling applications perfectly, making it the obvious choice for almost any building project – old or new.
The MAGNA3 is of the canned-rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid. The innovative clamp with only one screw enables easy repositioning of the pump head. The MAGNA3 is a pump with no maintenance requirements and with extremely low Life Cycle Cost.
The pump is characterised by the following:
|
The MAGNA3 is a single-phase pump.
Characteristic features
|
Communication The MAGNA3 enables communication via the following:
|
Motor and electronic controller The MAGNA3 incorporates a 4-pole synchronous, permanent-magnet motor (PM motor). This motor type is characterised by higher efficiency than a conventional asynchronous squirrel-cage motor. The pump speed is controlled
| Liquid: | |
| Pumped liquid: | Water |
| Liquid temperature range: | 14 .. 230 °F |
| Liquid temperature during operation: | 140 °F |
| Density: | 61.35 lb/ft³ |
| Technical: | |
| Actual calculated flow: | 40.1 US gpm |
| Rated flow: | 22.5 US gpm |
| Resulting head of the pump: | 4.826 ft |
| TF class: | 110 |
| Approvals on nameplate: | 98544605 |
| Materials: | |
| Pump housing: | Cast iron |
| EN-GJL-250 | |
| ASTM A48-250B | |
| Impeller: | PES 30%GF |
| Installation: | |
| Range of ambient temperature: | 32 .. 104 °F |
| Maximum operating pressure: | 174 psi |
| Flange standard: | GF |
| Pipe connection: | GF15/26/40/43 |
| Pressure stage: | PN12 |
| Port-to-port length: | 6 1/2 in |
| Electrical data: | |
| Power input - P1: | 8.45 .. 106 W |
| Main frequency: | 60 Hz |
| Rated voltage: | 1 x 115-230 V |
| Maximum current consumption: | 0.29 .. 1.01 A |
| Enclosure class (IEC 34-5): | X4D |
| Insulation class (IEC 85): | F |
| Others: | |
| Energy (EEI): | 0.19 |
| Net weight: | 13.2 lb |
| Gross weight: | 14.2 lb |
| Shipping volume: | 0.42 ft³ |
| Custom tariff no.: | 8413.70.2005 |
